Regular Expression & Other Extractors

In JMeter and other load testing tools, the term correlation is the process of capturing a dynamic value from the server response and using it in a subsequent request. Common examples include:

• Session IDs and CSRF tokens
• OAuth access tokens
• Resource IDs returned after creating a record

JMeter provides several Post-Processors (mainly “Extractors”) for this purpose.

Regular Expression Extractor

Right-click a sampler → Add → Post Processors → Regular Expression Extractor.

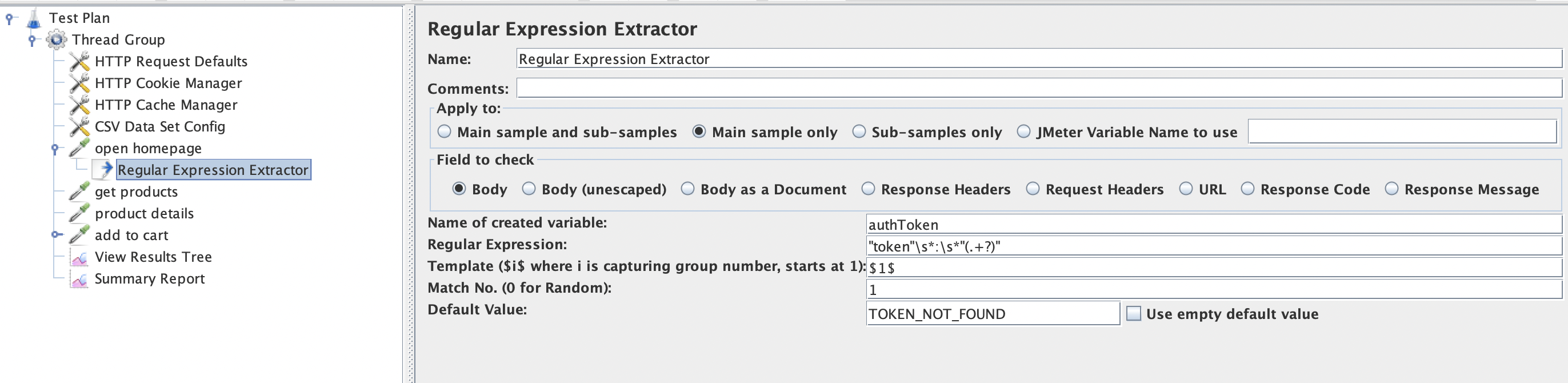

📸 Screenshot: Regular Expression Extractor configuration.

Fields

Example: Extract a Token from JSON

System under test response:

{
  "userId": 42,
  "token": "eyJhbGciOiJIUzI1NiIsInR..."
}

Regular Expression Extractor configuration:

Name of created variable : authToken
Regular Expression: "token"\s*:\s*"(.+?)"
Template          : $1$
Match No.         : 1
Default           : TOKEN_NOT_FOUND

Use the extracted value in the next request:

Header: Authorization = Bearer ${authToken}

Tip: Always set a meaningful Default Value (e.g., NOT_FOUND). In case of failed correlation, you will see NOT_FOUND in subsequent requests and it will allow you to see that something went wrong.

JSON Extractor (Recommended for REST APIs)

If your API returns JSON, the JSON Extractor is simpler and more readable than regex.

Right-click a sampler → Add → Post Processors → JSON Extractor.

Let’s return to our example test plan. We have a 2nd request which reads the list of products from the website backend API and returns JSON response which looks like this:

{
  "Items": [
    {
      "cat": "phone",
      "desc": "The Samsung Galaxy S6 is powered by 1.5GHz octa-core Samsung Exynos 7420\n processor and it comes with 3GB of RAM. The phone packs 32GB of \ninternal storage cannot be expanded. ",
      "id": 1,
      "img": "imgs/galaxy_s6.jpg",
      "price": 360.0,
      "title": "Samsung galaxy s6"
    },
    {
      "cat": "phone",
      "desc": "The Nokia Lumia 1520 is powered by 2.2GHz quad-core Qualcomm Snapdragon 800 processor and it comes with 2GB of RAM. ",
      "id": 2,
      "img": "imgs/Lumia_1520.jpg",
      "price": 820.0,
      "title": "Nokia lumia 1520"
    }
  ]
}

So, as you can see:

• Samsung galaxy s6 has id 1
• Nokia lumia 1520 has id 2

We have a list of product names in the CSV file, so now we need to extract product IDs from the server response to use them in the following request.

Let’s add a JSON Extractor to the 2nd request and set it up like this:

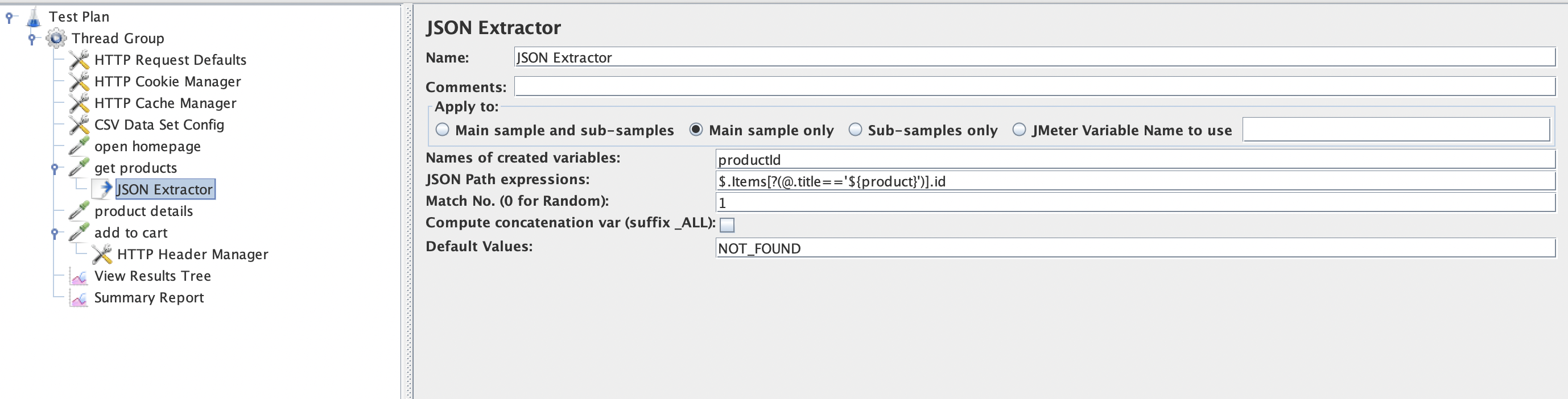

📸 Screenshot: JSON Extractor configuration.

Now we have a dynamic ${productId} variable. The value will be populated depending on the current line from the CSV file. Now, let’s replace hardcoded values in 2 requests with dynamic product ID:

1. product details request correlation:

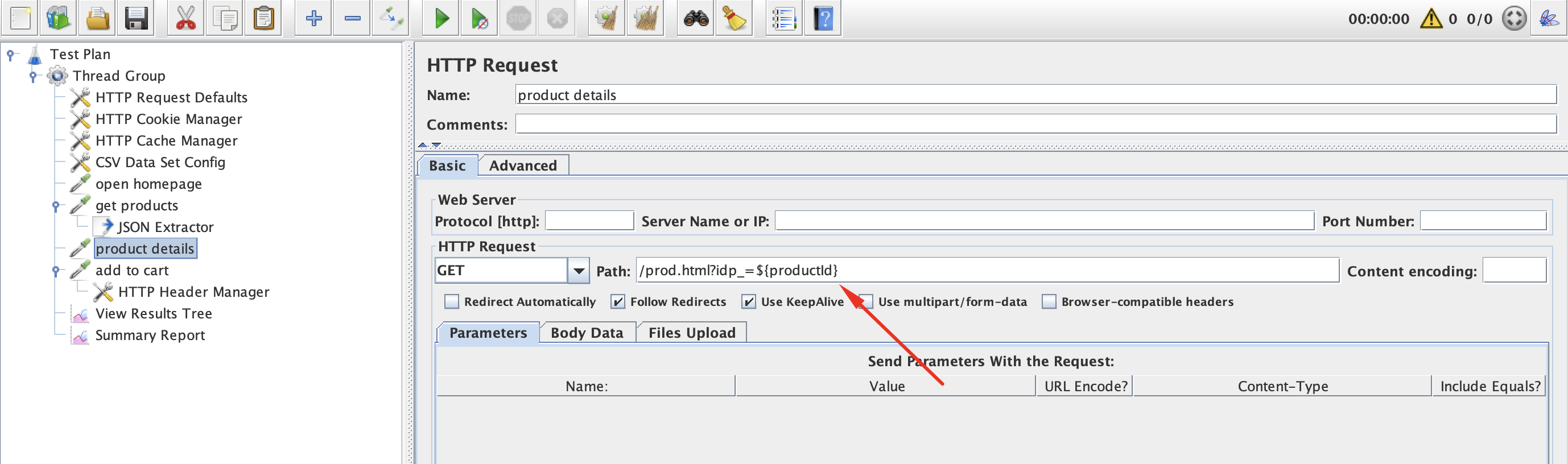

   📸 Screenshot: Product Details Request Correlation

2. add to cart request correlation:

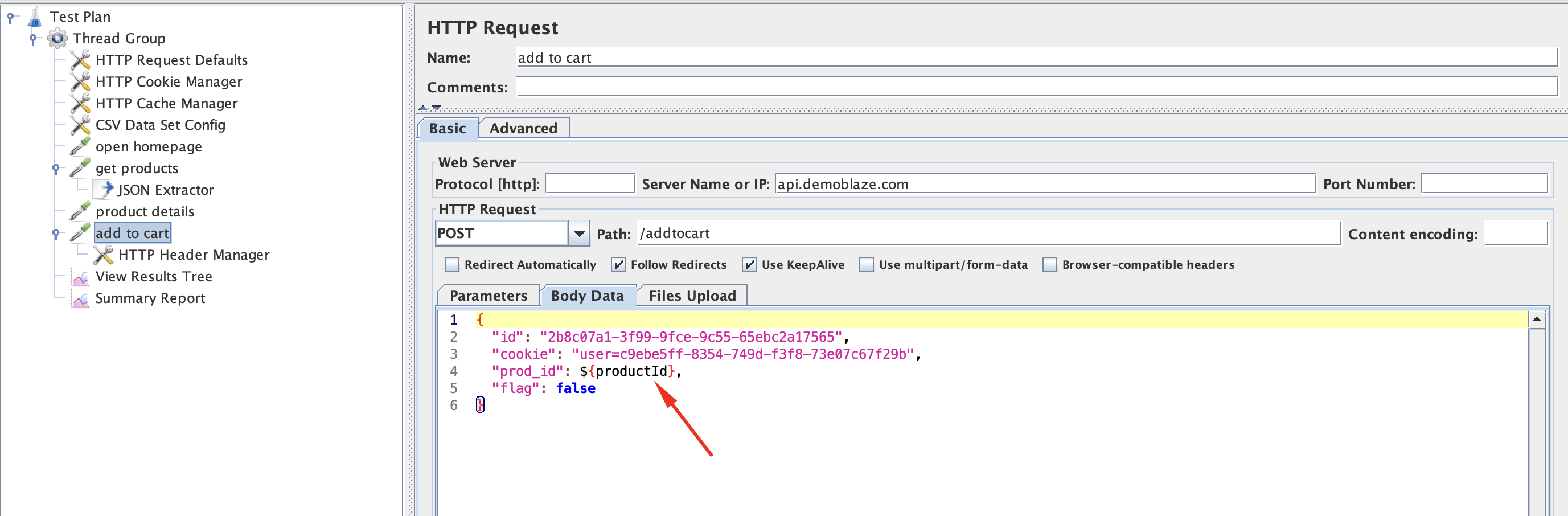

   📸 Screenshot: Add To Cart Request Correlation

Hold on. We have a couple more values in the request body which look dynamic to me:

{
  "id": "2b8c07a1-3f99-9fce-9c55-65ebc2a17565",
  "cookie": "user=c9ebe5ff-8354-749d-f3f8-73e07c67f29b"
}

However, looking into server responses, I cannot find any places where they’re set. So, I assume that they’re generated on the client side (in the browser). As JMeter is not a browser and cannot execute JavaScript, we need to properly simulate these parameters to be unique to match real user/browser behavior.

Values seem to be GUID-like structures, so JMeter’s function __UUID() is a good candidate because it returns exactly what we’re looking for. So, let’s replace hardcoded values with ${__UUID()} function:

{
  "id": "${__UUID()}",
  "cookie": "user=${__UUID()}",
  "prod_id": ${productId},
  "flag": false
}

The final fully parameterized request body would look like this:

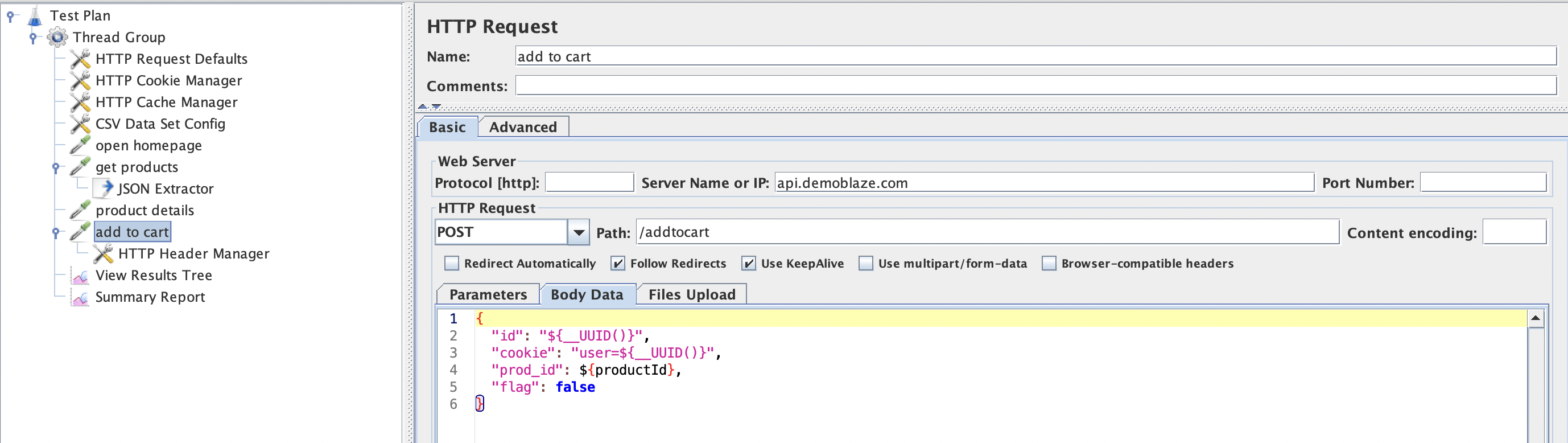

📸 Screenshot: Fully Parameterized Add to Cart request.

Now, let’s continue to other types of extractors.

XPath Extractor (For XML/HTML)

If the response is XML or HTML, use the XPath Extractor or XPath2 Extractor.

XPath Query              : //input[@name='csrf_token']/@value
Name of created variable : csrfToken

CSS Selector Extractor (For HTML)

Uses CSS selectors (like jQuery) to extract values from HTML:

CSS Selector : input[name=csrf_token]
Attribute    : value
Variable     : csrfToken

Choosing the Right Extractor

Debugging Extractors

1. Add a Debug Sampler after the request. It dumps all variables so you can verify the extracted value.
2. Use View Results Tree with the RegExp Tester or JSON Path Tester view (dropdown at the bottom of the response pane) to test your expression interactively.

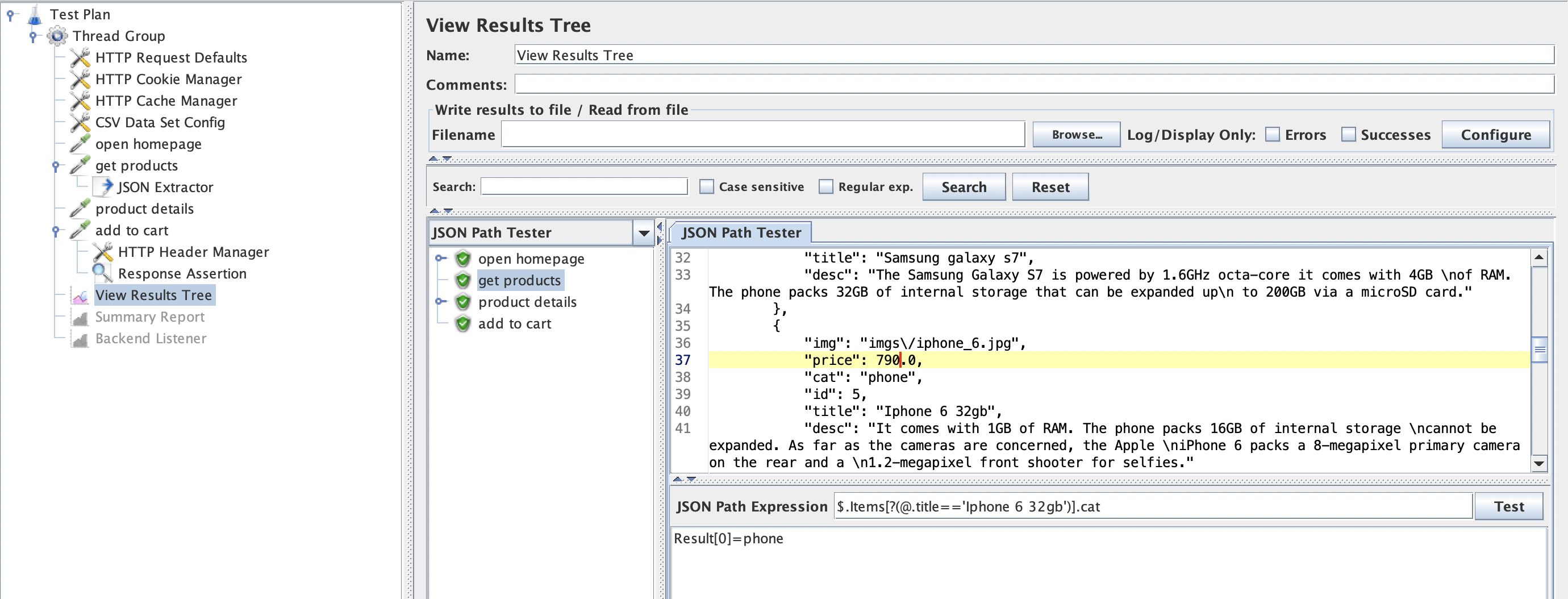

📸 Screenshot: Testing a JSON Path expression in View Results Tree.

Correlation Workflow

A typical correlation workflow looks like this:

1. HTTP Request - POST /login
   └── JSON Extractor → ${authToken}

2. HTTP Request - GET /api/profile
   Header: Authorization = Bearer ${authToken}
   └── JSON Extractor → ${userId}

3. HTTP Request - GET /api/orders?userId=${userId}

Each response feeds data into the next request and creates a realistic user flow.

We completed correlation and parameterization for the test plan. Now let’s continue to Assertions and Logic Controllers.
