Installation

Prerequisites

Before installing JMeter, make sure you have Java 8 or later installed. JMeter 5.6+ officially supports Java 8 or higher. Also, if possible, use JDK instead of JRE as it includes

• keytool which is needed for recording HTTPS traffic with your browser
• jconsole, jstat and other tools which are useful for JMeter tuning and troubleshooting

Verify your Java version:

java -version

You should see output similar to:

openjdk version "21.0.3" 2024-04-16 LTS
OpenJDK Runtime Environment Microsoft-9388422 (build 21.0.3+9-LTS)
OpenJDK 64-Bit Server VM Microsoft-9388422 (build 21.0.3+9-LTS, mixed mode, sharing)

If Java is not installed, download it from OpenJDK website or use your operating system’s package manager:

Downloading JMeter

1. Open the Download Apache JMeter page with your browser.
2. Under Binaries, download the .zip (Windows) or .tgz (macOS/Linux) archive.
3. Extract the archive to a directory of your choice, for example:

# macOS / Linux
tar -xzf apache-jmeter-5.6.3.tgz -C ~/tools/

# Windows (PowerShell)
Expand-Archive apache-jmeter-5.6.3.zip -DestinationPath C:\tools\

Tip: Avoid paths with spaces and non-English characters. C:\tools\apache-jmeter-5.6.3 is better than C:\Program Files\Apache JMeter.

JMeter File System Structure

After extraction, your directory looks like this:

apache-jmeter-5.6.3/
├── bin/            ← startup scripts, properties files
│   ├── jmeter      (Linux/macOS launcher)
│   ├── jmeter.bat  (Windows launcher)
│   ├── jmeter.properties
│   └── ...
├── docs/           ← local copy of the user manual
├── extras/         ← Ant build files, example JMX files
├── lib/            ← core jars and dependencies
│   └── ext/        ← plug-in jars
├── licenses/
└── printable_docs/ - offline documentation

Key files you will interact with most often:

Starting JMeter for the First Time

GUI Mode

cd ~/tools/apache-jmeter-5.6.3/bin
./jmeter.sh          # macOS / Linux
jmeter.bat        # Windows

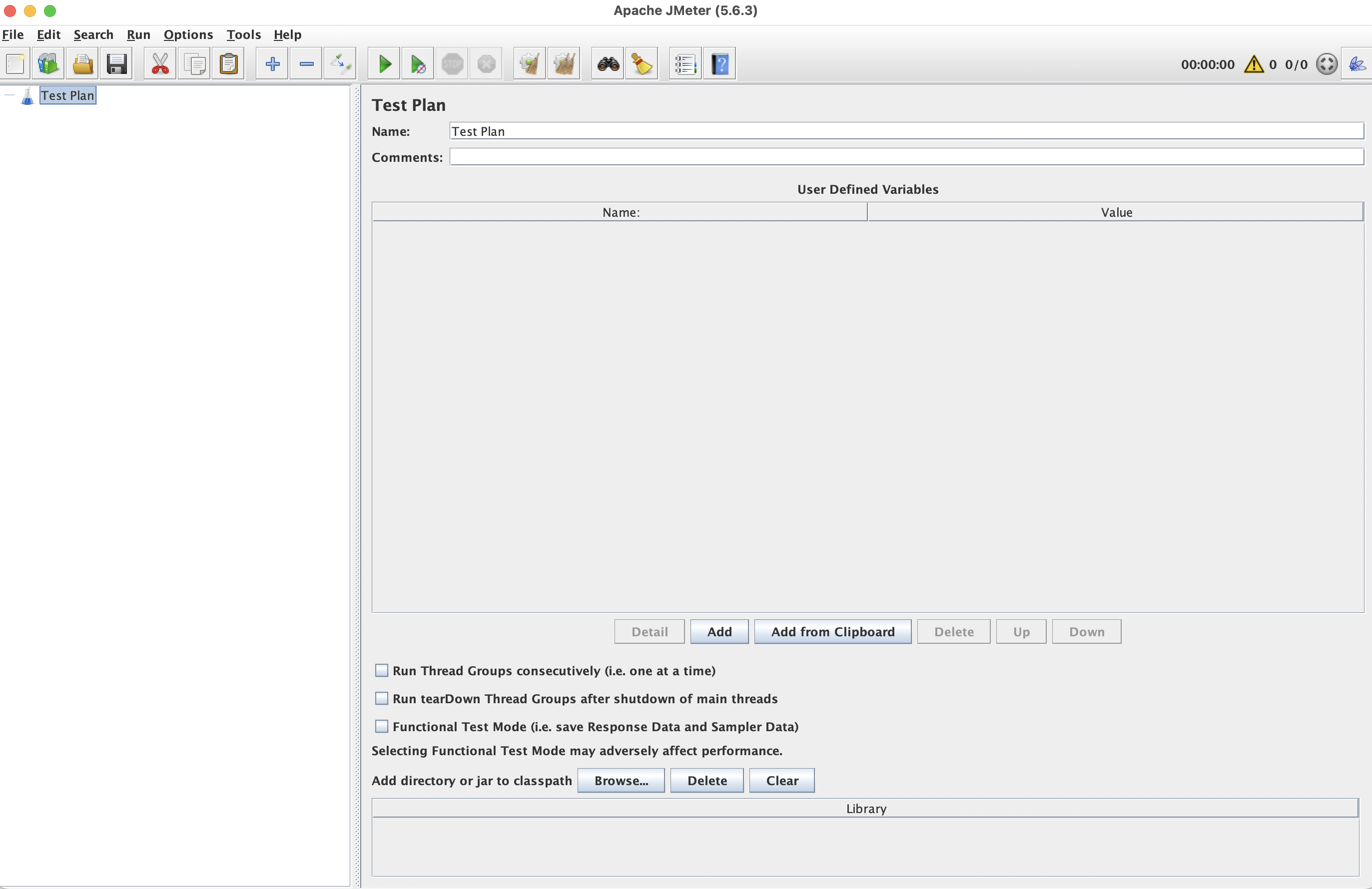

You should see the JMeter splash screen followed by the JMeter main window with an empty Test Plan.


📸 Screenshot: JMeter GUI - empty Test Plan after first launch.

Optional: Add JMeter to PATH

To run jmeter from any directory, add the bin folder to your system PATH:

# ~/.zshrc or ~/.bashrc
export PATH="$PATH:$HOME/tools/apache-jmeter-5.6.3/bin"

Reload your shell (source ~/.zshrc) and confirm:

jmeter --version

Installing the Plugins Manager

The JMeter Plugins Manager gives you one-click access to dozens of community plug-ins. You can install plugins, keep them up-to-date, and uninstall them when you don’t need them anymore.

1. Download jmeter-plugins-manager-X.X.jar from https://jmeter-plugins.org/install/Install/.
2. Copy the jar into lib/ext/.
3. Restart JMeter - you will see a new Plugins Manager entry under the Options menu.

Tip: Popular plug-ins you may want right away include Custom Thread Groups, 3 Basic Graphs, and Throughput Shaping Timer.

Summary

• JMeter requires Java 8+.
• Download the binary archive and extract it; no installer needed.
• Launch with bin/jmeter (GUI) or bin/jmeter -n (CLI).
• Add the Plugins Manager jar to lib/ext/ for easy plug-in management.

Now we have JMeter installed and running. Let’s switch to key concepts and glossary.
