How to conduct API integration testing
May 2, 2024

Navigating the Complexities of API Integration Testing

API Testing
Test Automation

Integration testing plays a crucial role in the development lifecycle, ensuring that different components of an application interact seamlessly, acting as a critical bridge between unit testing and system testing. When it comes to API integration testing, this process becomes even more critical because APIs are the axis that hold various services together. They enable them to communicate effectively.

But what happens when your application depends on services out of your control?

In this blog, we will dive into the world of API integration testing by exploring definitions, types, API testing strategies, and the role of service virtualization in ensuring seamless interaction between services.

What Is Integration Testing?

Integration testing is a software testing process that combines individual units of code and tests them as a group. The goal is to identify any discrepancies between integrated units or between the system and external systems.

This testing phase is essential for catching issues that unit tests might miss, such as problems with interfaces, network communication, databases, and other system-wide concerns.

Both developers and testers are responsible for integration tests, developers should verify that individual components integrate correctly with each other, while testers define scenarios, create and execute the test cases to validate the integration of these components. Both parties work together to ensure that the integrated system functions as expected and that any issues are identified and resolved.

Types of Integration Testing

There are several approaches to integration testing, each with its unique application and benefits. For instance, Big Bang Integration Testing involves integrating all components at once, which can be efficient but risky if the system is complex.

Incremental Testing, on the other hand, integrates and tests components one by one, which can be more manageable and allows for the isolation of defects.

It includes:

  • Top-Down Integration: Starts with higher-level modules and progresses downward, using stubs for lower-level modules not yet developed.
  • Bottom-Up Integration: Begins with lower-level modules moving upward, using drivers for higher-level modules not yet ready.

Each integration testing type has its pros and cons, and the choice depends on system complexity, resources, project timelines, and other critical factors.

Mastering Continuous Testing with Automation

Learn how testing ROI comes from faster development cycles, improved software quality, and greater alignment with modern software development practices with BlazeMeter.

Read Report

API Integration Testing Explained

Application Programming Interfaces (APIs) are the canals through which different software components interact. API integration testing is a subset of integration testing focused on verifying that APIs meet functionality, reliability, performance, and security expectations. API integration testing has multiple benefits, including the early detection of potential issues and the verification that components will interact properly in the production environment.

When planning API testing, it's important to adopt strategies that cover various aspects of the API's functionality. This includes testing under different conditions, considering parameters, error handling, security implications, among others. Employing heuristics can also aid testers in making informed decisions about what to test and how to approach complex test scenarios.

Heuristics in API Integration Testing

Heuristics are experience-based techniques that guide the testing process. They allow testers to create scenarios considering important aspects of APIs. For example, the POISED heuristic — developed by Amber Race — presents six key areas that need to be taken into account:

  • Parameters
  • Output
  • Interoperability
  • Security
  • Error Handling
  • Data.

Another heuristic that is similar to POISED is VADER. In this case, the main points are Verbs, Authorization/Authentication, Data, Errors, and Responsiveness.

Using Service Virtualization in API Integration Testing

Once the API integration testing strategy and different scenarios are defined, you should ask yourself a few questions:

  • What if the endpoint under test depends on an unavailable external service?
  • Does it depend on an endpoint that is out of scope?
  • Do you just want to test it independently before integrating it with another service?

In these types of scenarios, service virtualization proves beneficial.

Mocks are simulated objects that mimic the behavior of real components within a system. They are particularly useful in integration testing for isolating the system under test and for when the actual components are unavailable or incomplete. While mocks enhance testing efficiency, they must be used prudently to avoid false positives or negatives.

API Integration Testing: Which Service to Create Virtually & How

Deciding which service to create virtually depends on the scope of your tests. Typically, external services or components that are out of the control of the test environment should be created virtually. The focus should be on identifying the specific dependencies or external systems that need to be simulated to effectively test the target component or system.

This involves creating virtual objects or utilizing virtual frameworks to mimic the behavior of these dependencies and allow for controlled and isolated testing of the component in question.

Tools like BlazeMeter Service Virtualization offer a powerful platform for mimicking any component or service. This enables testers to simulate and test various scenarios without relying on actual services by giving realistic responses.

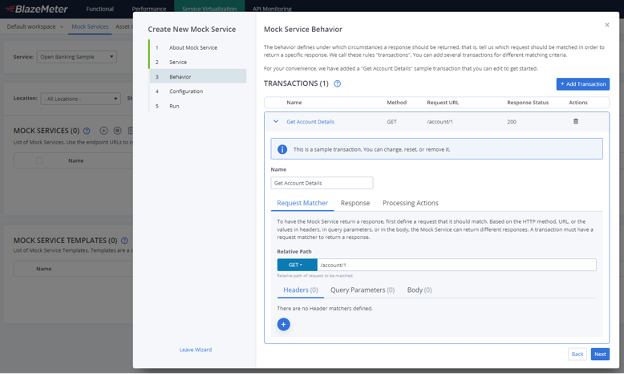

BlazeMeter Service Virtualization dashboard.

Conducting Automated API Integration Testing on BlazeMeter

Now that you know how heuristics can guide you when defining API test scenarios and service virtualization allow you to test components without relying on external dependencies, it is time to develop the tests and execute them.

There are different tools that can be used for API testing — such as PostmanSoapUI, and more. BlazeMeter's API Testing and Monitoring tool supports comprehensive testing from development to production. It enables quick test setup, custom validation rules, and integration with CI/CD tools. With global performance monitoring and seamless workflow integration, it empowers users to deliver a superior API experience and improve application quality.

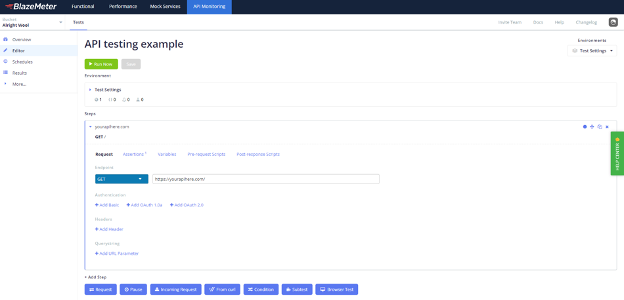

API integration testing with BlazeMeter.

Bottom Line

API integration testing is indispensable for delivering robust and reliable software. By understanding the types of testing, employing strategic approaches, and effectively using tools like service virtualization, teams can ensure their APIs function correctly within the larger system.

Remember, the goal is to streamline the testing process while maintaining a high standard of quality — fostering confidence in the software's performance upon deployment. The next step is to explore these tools and incorporate heuristics into your testing strategy.
